| Stock | Upon request |
| ISO Size | 20FT ISO - 6058mm x 2438mm x 2591mm |
| Material Tank Body | Stainless Steel 316L |
Approvals by Lloyd's Register, the Netherlands
Approved by international statutory authorities for the safe transportation of liquid hazardous, non-hazardous, and food cargoes and products
Reefer (Cool) Tank Container (s) are approved by international statutory authorities to safely transport various food products. Fruit Juices, Milk, Beverages, and General Purpose Liquids
Klinge Corporation End or Side Mounted Model
Refrigeration Unit, Model TCR-109, heats and cools the tank’s cargo by circulating brine (glycol) or synthetic oil around external cooling coils around the tank. The unit is designed, so the mechanical section fits on the side of the container, and the electrical control box is at the end, easily accessible when stacked at a terminal or onboard vessels.
This system transports hazardous and non-hazardous chemicals, pharmaceuticals, food (foodstuff) products, and beverages.
14 run system comprising eight (8) runs straddling the spillage trays on the top half of the tank, and six (6) runs on the bottom half of the tank. Runs manufactured from 304L /316L stainless steel.

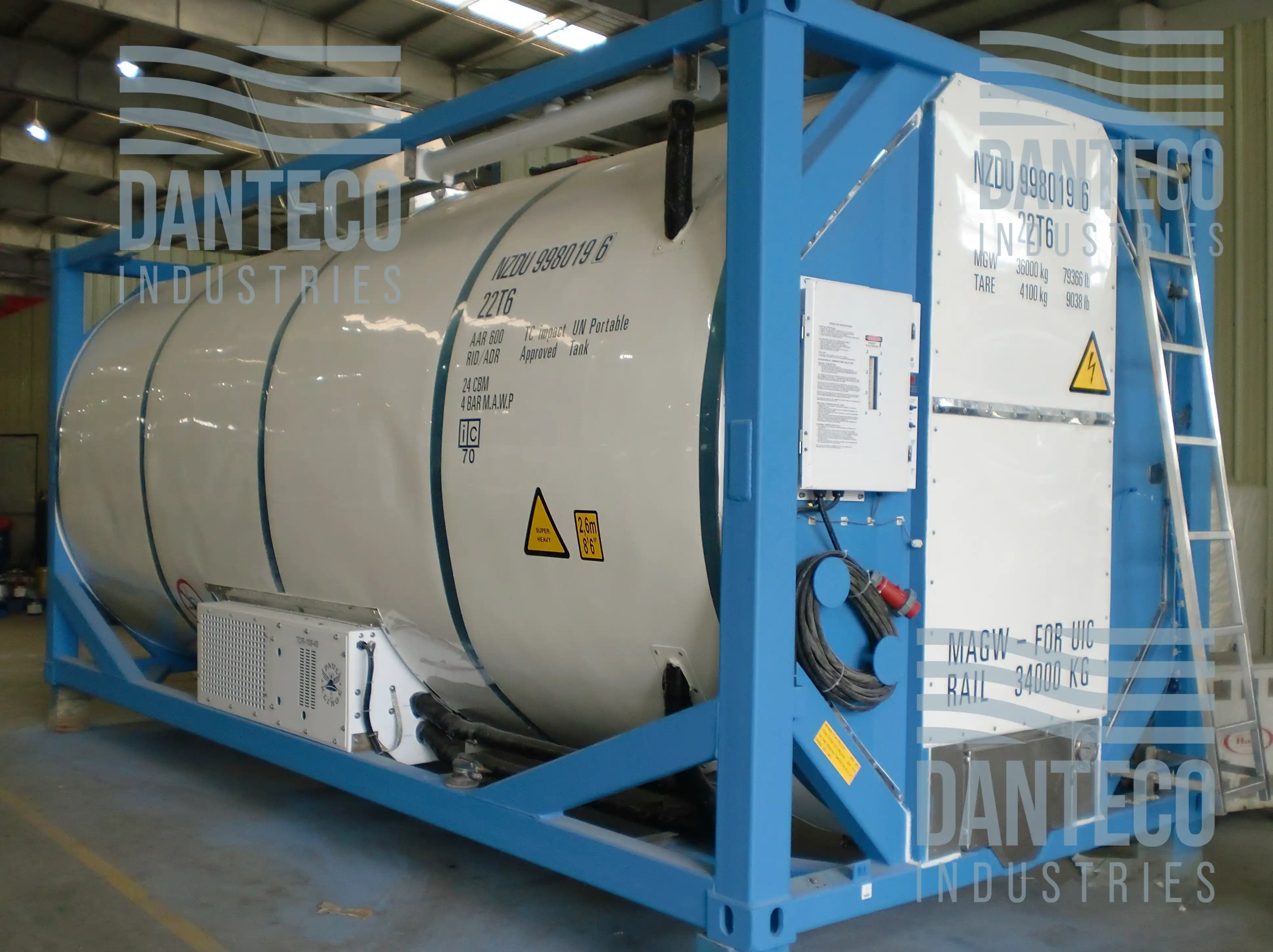

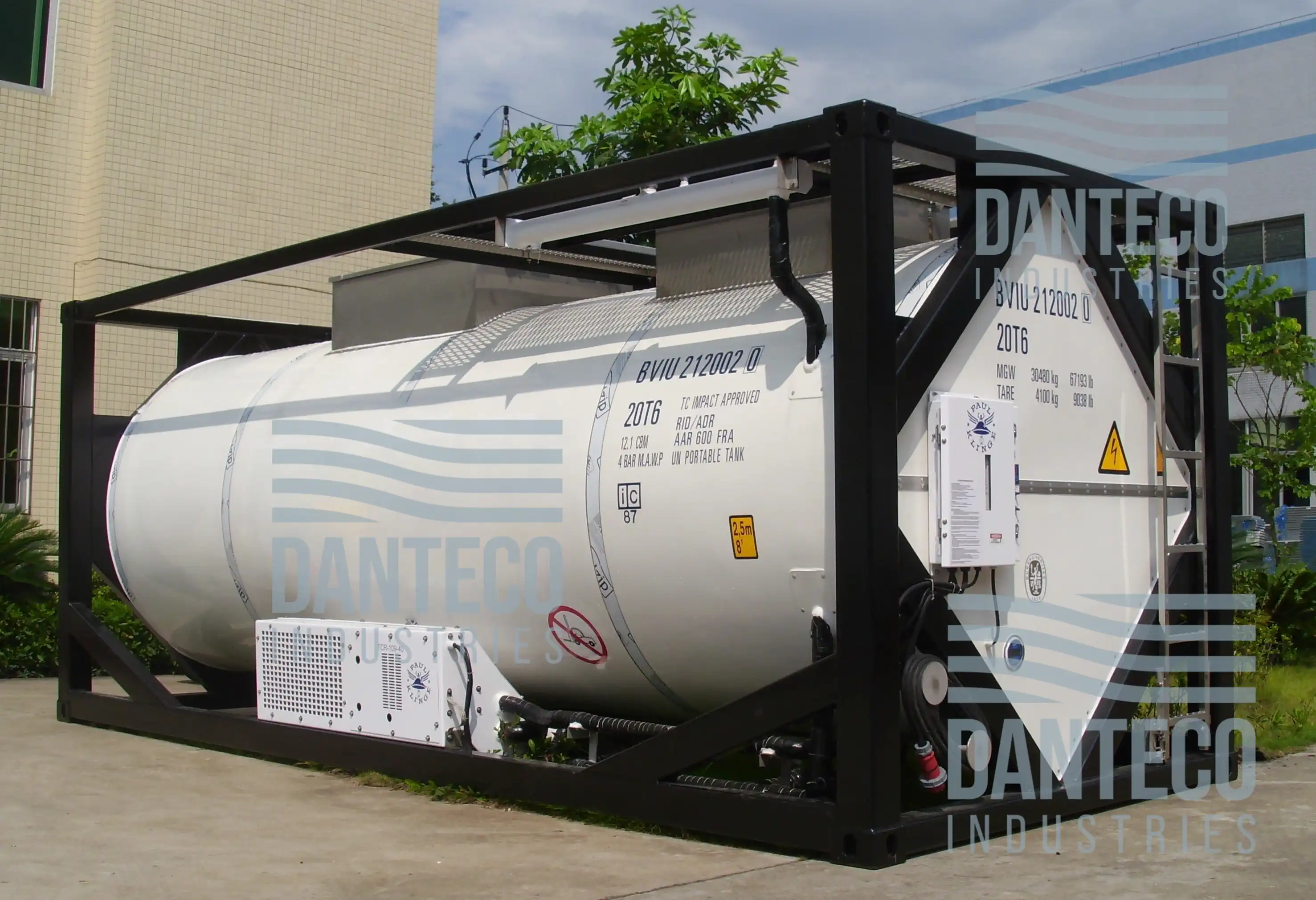

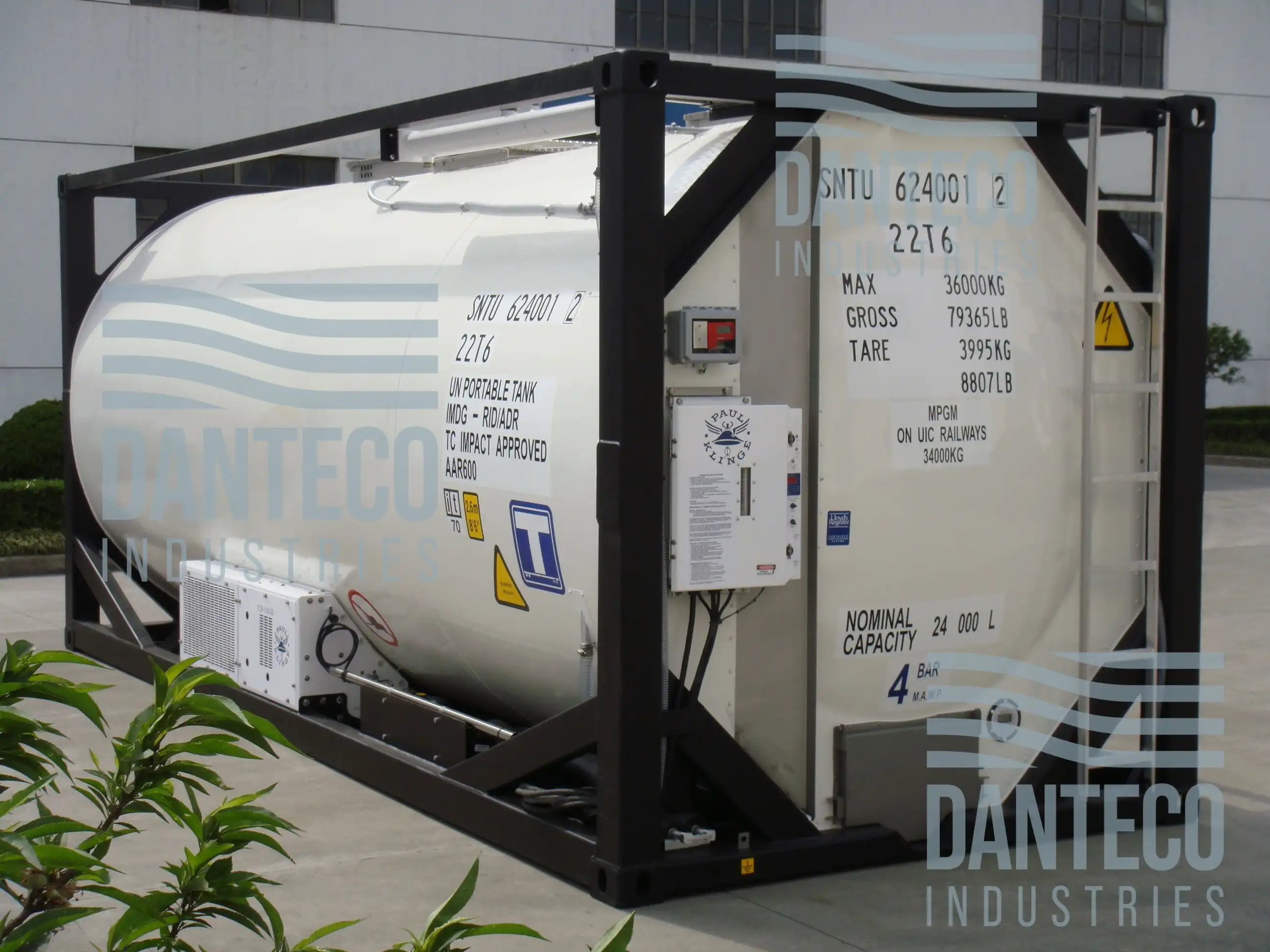

REEFER (COOL) TANK CONTAINER: up to 24000-Litre UN Portable Tank T7/ T11 6058mm x 2438mm x 2591mm, Full-frame Collar Type
6.0 bar test pressure, insulated, with Reefer Cooling System
Year manufactured: New Build and Refurbished Used
| Dimensions: | ||
| Metric | Imperial | |
| Capacity | up to 24000 LTR | (6340 US GALLONS) 5280 GALLONS |
| Maximum Gross Weight | 3600 KG | 74956 LBS |
| Tare | 4700 KG | 8113 LBS |
| Construction: | ||
| Working Pressure | 4.0 bar | 58 psi |
| Test Pressure | 6.0 bar | 87 psi |
| Steam Working Pressure | 4.0 bar | 58 psi |
| Steam Test Pressure | 6.0 bar | 87 psi |
| Relief Valve Set Pressure | 4.4 bar | 63 psi |
| Ambient Temp. Range | -40°C to +65°C | -40°F to +149°F |
| Maximum Cargo Temp | 130°C | 248°F |
| Shell Material | Stainless steel, ASTM A240 304 low carbon <0.03% DIN 17441 w1.4401. Cold rolled shell 2B finish. Thickness nominal 4.2mm shell +0.1 corrosion allowance, 4.65 ends, and equivalent 6mm mild steel per regulations. | |
| Design Code / Approvals | ASME, Section VIII, Division 1 where applicable and IMDG T11, US Dot CFR 49 T11, ADR, RID, UIC, CTC, AAR, CSC, TIR. ISO. | |
| Standard Fittings: | ||
| Manlid | Guard 500mm (20") diameter, 8 point fixing, 14mm x 12mm seal. | |
| Calibration | Volumetric stainless steel chart. | |
| Airline / Vapour | Guard 40mm (1½") ball valve, outlet 1½ " BSP, stainless steel screw cap. | |
| Relief Valve | 80mm (3") DN65 flanged Guard high flow valve, operating pressure 4.4 bar, weld-in flange plugged provision for a second flanged valve. | |
| Top Outlet | Blanked weld-in flange drilled 6 M12 holes @ 168 pcd, provision for optional fitting of 80mm (3") stainless steel butterfly valve. DN80, ASA 150 bolted blank flange outlet, 80mm (3") removable full-length syphon tube. | |
| Bottom Discharge | 1x 3" 45 deg. Swing Footvalve from Guard (clean-flow style) bottom discharge valve assembly (foot-valve, butterfly, and cap) with 3" Cam-lock Provision or 3" BSP flanged outlet with 3" BSP dust cap all in stainless steel 316 | |
| Remote Closure | The bottom valve closure device is fitted together with the provision of a fusible link. | |
| Gaskets & Seals | Parts in contact with cargo, PTFE/Teflon | |
| Steam Heating | Six (6) runs giving 8.5m2 effective surface area, with 0.75" BSP inlet/outlet cap, Working Pressure at 4 Bar Temperature 130°C. | |
| Insulation | 50 mm thick Polyurethane covered 1.8mm white GRP cladding. | |
| Compartment | Open stainless steel spill compartments with provision for optional lids. | |
| Document Holder / Earth | Fitted at the rear end, suitable for shipping papers, MSDS, etc. The Earth is located at the rear. | |
| Data Plate / Markings | Data Plate / Markings. | |
| Walkway | Aluminium Q grating with access to top fittings, extending to the front end. Provision for an optional handrail. A ladder at rear RHS (rear hand side) | |
| Temperature Gauge |
80mm dia dual scale -20°C to 200°C / 0 to 400°F. |
|
| Cooling System | Klinge side-mounted TCR-109 refrigeration system complete with glycol expansion tank and rear-mounted control box. | |
| Options: | ||
| Genset | Use Klinge front-mounted TCR-104 refrigeration system and add NMG-112 Genset (generator)(suitable for < 23 CBM capacity). | |
| Accessories | Data-logger - Heater unit | |
| T-Code | It can be upgraded to make it suitable to carry dangerous goods under T-code. | |
Actual measurements and specifications may vary and are subject to confirmation.
Tank containers are supplied per the manufacturer's (Danteco Industries BV) general trading terms and conditions.
