20FT Offshore Cement Silo Container DNV 2.7-1 and DNV 2.7-3

Stock	Upon request
ISO Size	20FT HC - 6058x2438x2896mm
Material Tank Body	Mild / Carbon Steel Q345R

CCS (China Classification Society)

Lloyds Register

Bureau Veritas

DNV

20FT Offshore Cement Silo Container DNV 2.7-1 and DNV 2.7-3

Download Technical Details
info@danteco.com
+31 85 401 9045
Approved by international statutory authorities for the safe transportation of dry bulk powders, hazardous and non-hazardous cargoes, and products

Offshore-rated ISO Bulk Cement Silos from Danteco are used to transport and store powdered cement for marine energy infrastructure grouting services. They have manufactured ASME-VIII-Div 1 rules for the construction of pressure vessels and are classified as ISO Type 20B4 (20FT Dry Bulk Containers). They also fall under the ISO TC-104 regulation.

The cement silos are in gauge 20FT standard ISO configuration with offshore certified pad-eye lifting eyes, easily transported by conventional shipping container lines, and well suited to intermodal transportation. The cement silos are provided with TIR and CSC certification.

International statutory authorities approve the pneumatic-operated Cement Tank for bulk powder cement to safely transport bulk cement, limestone and fly ash powder products. Danteco Industries BV supplies various designs of the bulk 20FT bulk cement tank. Our offshore cement tank is separated for five purposes: tank containers for offshore, cement storage, short-sea, deep-sea shipping, and rail transportation.

The tank containers are suitable for transporting bulk cement, limestone, fly ash, or coal powder by rail, road, and ship. All materials used in the construction shall withstand extremes of temperature ranging from -19ºC to +80ºC / -2,2ºF to +176ºF without affecting the strength of the container.

All Danteco tank containers are of the highest quality design and construction and conform strictly to the latest international approvals.

Please note that in certain exceptional cases, the containers operated by Danteco may have specifications that differ from the descriptions above.

Also, cargo in the container must conform to the dimensional regulations and laws stipulated by the host country; thus, payload capacity may be affected. For more information or assistance, please get in touch with our office.

CSC plated for transport and logistics
Rated to DNV 2.7-3 R30
Cement can be transferred by crane infield
Twin internal air conveyor aeration system for constant cement supply and recovery

Our offshore-rated cement silos are designed to DNV 2.7-3 specifically for transferring bulk powder cement between vessels offshore in sea states up to Hs = 3m

20FT Offshore-rated Cement Silos

Max. Capacity 18.000 LTR
Max. Payload 23.000 KG
20' x 8' x 9'6" 20FT HC ISO Full Frame Offshore Design
Pad Eye E36
Design temp. -20ºC to +70ºC / -2,2ºF to +176ºF
Design Pressure 2 bar
Max. Gross Weight 30,480 kg
4" Cam-Lock male adaptor
Approvals by CCS, DNV 2.7-3 R30, ISO 10855-1, TC Approved

SPECIFICATION OFFSHORE CEMENT TANK CONTAINER - DRY BULK POWDER TANK 20FT ISO OFFSHORE

6058mm x 2438mm x 2896mm, 3.0 bar test pressure

Year manufactured: new build also available for rental

Dimensions:
	Metric	Imperial
Loading Capacity	18000 LTR	(4755 US GALLONS) 3959 GALLONS
Volume Capacity	20500 LTR	(5415 US GALLONS) 4509 GALLONS
Maximum Gross Weight	30480 KG	67196 LBS
Tare	6580 KG	14506 LBS
Construction:
Working Pressure	2.0 bar	29 psi
Test Pressure	3.0 bar	43.51psi
Relief Valve Set Pressure	2.2 bar / -0.21 bar/vac	32 psi / -3 vac/psi
Ambient Temp. Range	-20°C up to +80°C	-4,00°F up to +176°F
Maximum Cargo Temp	80°C	176°F
Shell Material	Dia. 2400mm Cylindrical Shell Mild Steel Q345B, 4,5 mm shell, 5,0 mm dish ends.
Design Code / Approvals	ASME, Section VIII, Division 1, where applicable, and TIR, C.S.C., ISO/TC-104, ISO668, ISO6346, ISO830, ISO1496/3(Edt1995), ISO1161, CCS. (China Classification Society).
Standard Fittings:
Manlid	2x 500mm (20") diameter, 6-point fixing, 14mm x 12mm seal, located centre.
Air Source pressure	0.2~0.3 Mpa.
Air Supply	≥8 m3/min.
Air-inlet diameter	100mm cam lock type joint.
Outlet diameter	4" male adaptor.
The average speed of discharge (conveying cement to a place 30m high, 30m far)	Cement: 1.0~1.5 t/min.
Remnant Ratio	% cement: ≤0.3 (Cement: Not more than 100kg).
Gaskets & Seals	Parts in contact with cargo, PTFE/Teflon.
Pipe System	The dry compressed airflow via a 100 mm cam-lock type joint enters the main pipe with a 2.5" one-way valve, a 2" safety valve, a 1/2"safety valve, and a pressure gauge, then goes into two air cavities at each side of the inside of the tank through two branch pipes which are separately connected to the tank and main pipe. Another airflow goes through a 1" ball valve and a 1" one-way valve into the unloading pipe to speed up unloading cement. The diameter of the main pipe is 76mm, and the branch pipe is 57mm.
Unloading pipe	A 4" steel pipe features one discharge butterfly valve and one 4" male adapter fixed to the discharge pipe.
Document Holder / Earth	Fitted @ the rear end, suitable for shipping documents, MSDS, etc. Earth is located at the rear.

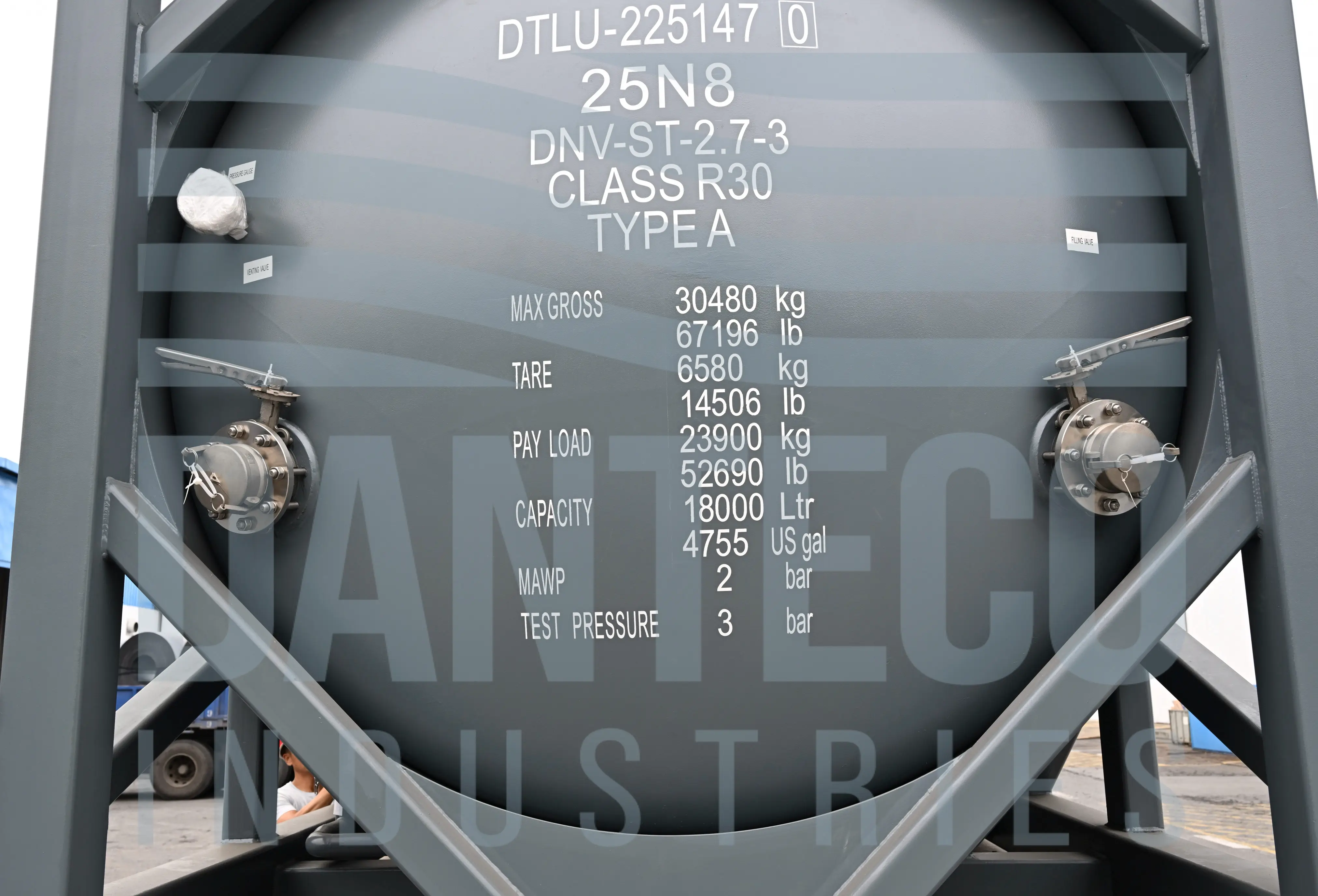

Data Plate / Markings	A stainless steel data plate detailing specifications is fitted to the rear end.
Frame	The frame comprises front and rear end frames, as well as top and bottom frames. Each end frame is constructed by two (2) corner posts, top and bottom end rails, and four (4) thick diagonal corner plates. Side rails, two (2) barrel supports, two (2) saddles, and eight (8) corner fittings.
Walkway	400MM-wide non-slip steel. One longitudinal walkway and three short transverse walkways at the front and rear, and adjacent to the rear of the manhole’s spill box. Steel-net walkways galvanized to 10-un thickness.
Handrail	(Optional) Integrated at the top rail

Actual measurements and specifications are subject to confirmation and may vary.
Tank containers are supplied in accordance with the manufacturer's (Danteco Industries BV) general trading terms and conditions.
